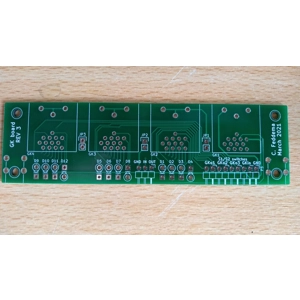

GK splitter pcb
GK splitter PCB
- Splitter can connect one guitar to three GK13 devices.
- This is just a board without components
Schematic:
Features:
- JP1, JP2 and JP3 are jumpers that provide ground lift to solve ground loop problems. Most of the time you will need a jumper or wire in place here.
- You can access all S1/S2 switches externally with footswitches. Connect the switches between the pin and ground!
- Connecting a device (VG/GR/GP10) to any output port will power the GK3
Bill of materials:
| GK1, GK2, GK3, GK4 | 4 | 13 pin PCB connector | reichelt.de: EB-DIO 13 |
| D1 – D12 | 12 | 1N5817 shottky diode | reichelt.de: 1N 5817 digikey.com: 1N5817FSCT-ND |
| Pin1 | 1 | Straight pin strips for the jumpers 2.54 mm | reichelt.de: MPE 087-1-024 or MPE 087-1-040 |
| Pin 2 | 1 | Angled pin strips for the jumpers 2.54 mm | reichelt.de: SL 1X40W 2,54 |
| Pin 2 | 4 | jumper | reichelt.de: JUMPER 2,54 SW |
|
| 2 | M3 screw terminals | http://nl.rs-online.com/web/p/screwterminals/ 6142425/ (small numbers) https://www.ettinger.de/en/product/13.42.320 |
Units in Stock:
5
Product Condition:
New
